Cqlsh is a utility for running simple CQL (Cassandra Query Language) commands on a local or remote Cassandra cluster. This article describes how cqlsh can be used to connect to clusters in Instaclustr. In this article, we assume that your cluster has been set up and provisioned properly as shown in our previous tutorial “Creating a Cluster”.
Table of Contents
Python 2.7 or a later version needs to be installed. If you don’t have python installed on your local machine, please refer to the appendices at the end of this article.
If encryption is enabled in your cluster, SSL is needed for connecting to the cluster and cqlshrc file is used to configure SSL encryption.
a) For Mac/Linux
Open your terminal and using the following command, create a “.cassandra/cqlshrc” file in your user home directory.
Open the empty cqlshrc file using the following command.
Copy the following content and paste it into the empty cqlshrc file. Then save the file.
Now you can start cqlsh with the – – ssl option.
For tarball installation and binary download:
For package installation:
For source download:
Please note: If you are using running cqlsh from Mac OS X and it returns an error message that the TLS protocol version is not supported, you may need to update your system Python (E.g. install an updated Python 2.7 via Homebrew).
b) For Windows
Open notepad, create a new file and name it to “cqlshrc”. Copy the following content and paste it into the file. Then save the file into the “.cassandra” directory under your user home directory.
If you encounter a cql version error like: “cql_version ‘3.3.1’ is not supported by remote (w/ native protocol). Supported versions: [u’3.2.1′]”, run cqlsh with an extra option “–cqlversion=’3.2.1’”. First check that you have not specified an incorrect version in your cqlshrc file, you can either remove this or update it to the required version. Otherwise, run cqlsh with an extra option “–cqlversion=’3.2.1’”. You can follow the example below:
For tarball installation and binary/source download:
For package installation:
Use the same option for connecting to ssl enabled clusters:
If neither of these solutions work, you may be required to update your cqlsh version to the client bundled with the version of cassandra you are trying to connect to. You can download the required binaries from https://cassandra.apache.org/download/.
If you encounter a protocol version error like “This version of the driver does not support protocol version N”, then you will need to update your cqlsh version to the client bundled with the version of cassandra you are trying to connect to. Again, you can download the required binaries from https://cassandra.apache.org/download/.
For additional information on CQL, refer the following resources:
Navigate to the download location on your computer, double clicking the Python MSI file and press the “Run” button when the dialog box pops up. Then you will see the following window.
If you only have one user account on your computer, you can select the “Install for all users” option. If you have multiple accounts on your computer and don’t want to install it across all accounts, you can select the “Install just for me” option. Press the “Next” button, then you will see the following window.
If you want to change the install location, feel free to do so. However, it is best to leave it as it is. Then press the “Next” button and you will see the following window.

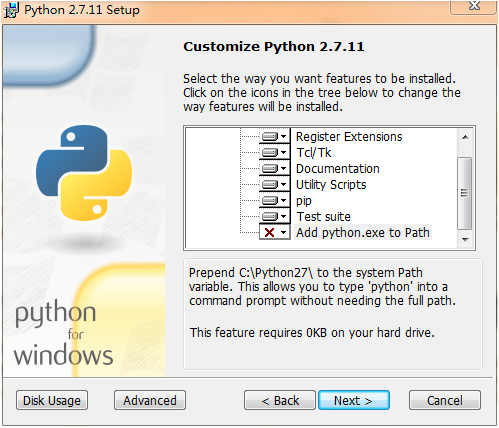

Scroll down in the window, find the “Add Python.exe to Path”, click on the small red “x” button and choose the “Will be installed on local hard drive” option. Press the “Next” button, then the installation starts. You will notice that the installation will bring up a command prompt window. Please wait and do nothing until you see the following window.
Click the “Finish” button to exit the installer.
If you chose Python 3.4.1 or later version, you will not need to manully add Python to System Path Variable. Then you can skip the following procedure.
Once you have successfully installed Python, it is time to add it to the System Path Variable. Doing this will allow Python to run scripts on your computer without any conflicts of problems.
Open the start menu, search “environment” and select the option called “Edit the system environment variables.”
After the “System Properties” window pops up, select “Advanced” panel and click on “Environment Variables…”.
After the “Environment Variables” window pops up, click the “New…” button in the “System variables” group to create a new variable for Python as shown in the following picture. Then Press the “OK” button to save the changes.
Appendix B: Install Python on Mac
If you already have homebrew installed on your computer, you can skip this step. Otherwise use the following commands to install homebrew:
