Using the Apache Kafka Schema Registry

Please note that KRaft is not compatible with the Kafka Schema Registry add-on, and the Karapace Schema Registry should be used instead.

This example shows how to use the Kafka Schema Registry to store data schemas for Kafka topics which we will generate using Apache Avro. The example will also demonstrate how to use the Schema Registry to produce and consume generated Apache Avro objects using an Instaclustr Kafka cluster.

Creating an Apache Kafka cluster with the Kafka Schema Registry add-on

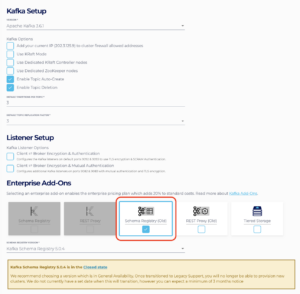

Instaclustr now offers Kafka Schema Registry as an add-on for our Apache Kafka Managed Service. To take advantage of this offering, you can now select ‘Kafka Schema Registry’ as an option when creating a new Apache Kafka cluster.



If you wish to add the Kafka Schema Registry to an existing Apache Kafka cluster, you can contact [email protected].

Using the Schema Registry

Now that the Schema Registry is up and running, you can now use it in your applications to store data schemas for your Kafka topics. The following example is a Java application that uses the Schema Registry and Apache Avro to produce and consume some simulated product order events.

Allow access to your client application

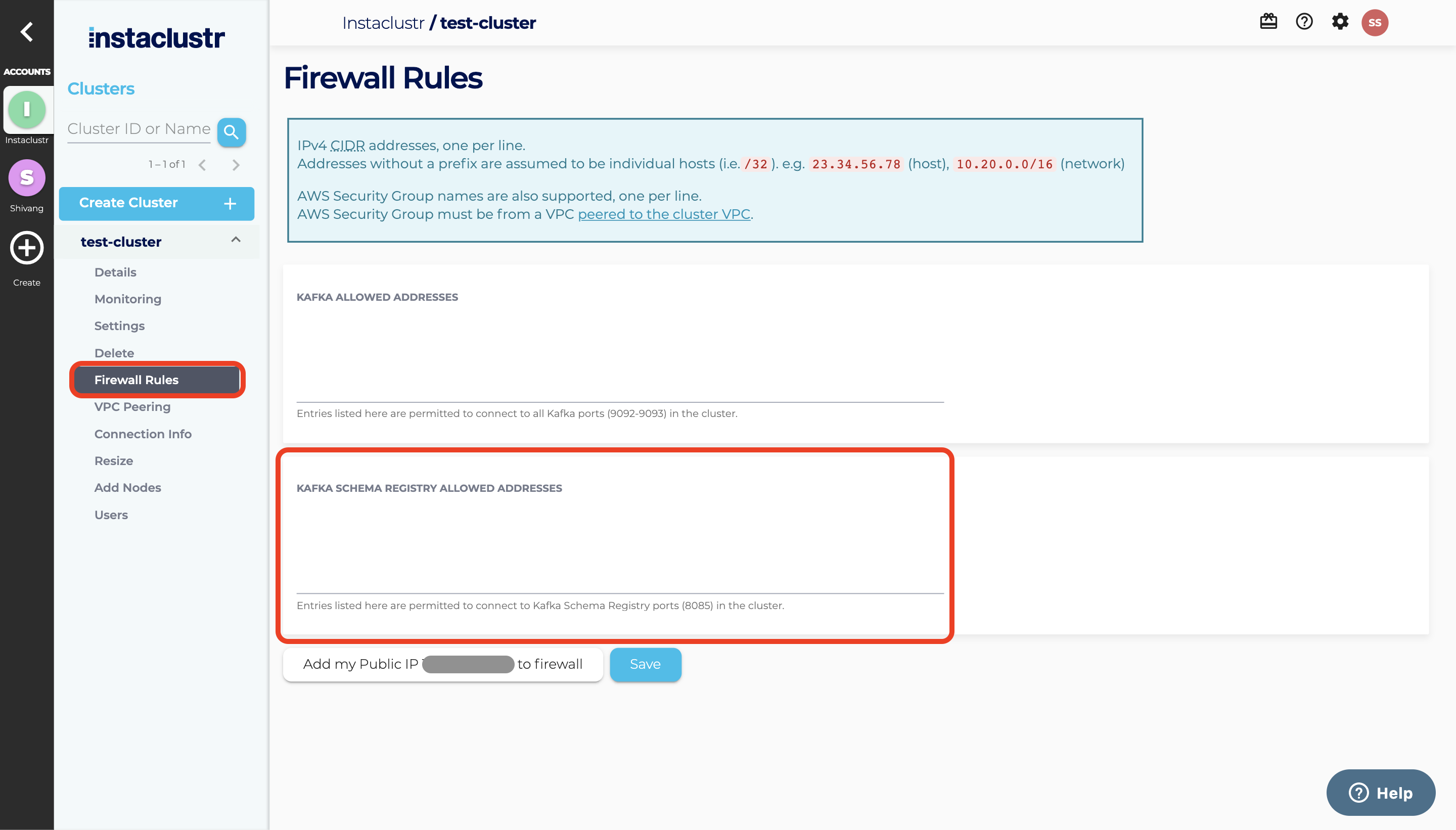

Before we can access our schema registry application, we need to open the firewall to our client application IP address. Once your cluster is up and running, go to Firewall Rules and add your IP address to the Kafka Schema Registry Allowed Addresses.

Client Dependencies

Add the kafka_2.12, avro, and kafka-avro-serializer packages to your application. These package are available via Maven (kafka_2.12, avro, kafka-avro-serializer). To add the following dependencies using Maven, add the following to your pom.xml file:

You will also need the avro-tools utility in order to compile the data schema into a Java class. The avro-tools utility is available here.

Create the Avro Schema

Before you can produce or consume messages using Avro and the Schema Registry you first need to define the data schema. Create a file orderEventSchema.avsc with the following content:

This file specifies a simple OrderEvent data serialization schema for product orders, with each OrderEvent containing an id, timestamp, product name, and price. For more information on the Avro serialization format see the documentation here.

Generate the Avro Object Class

With the schema file created, use the avro-tools utility to compile the schema file into an actual Java class:

Note: The src/main/java file path at the end of the command can be wherever you want, just make sure the generated class will be accessible by your application code. An example file structure is:

Create Kafka Topic

Use the guide here to create a new topic called orders.

Producing Avro Objects

Client configuration

Before creating a Kafka producer client, you first need to define the configuration properties for the producer client to use. In this example we provide only the required properties for the producer client. See here for the full list of configuration options.

The Connection Info page in the Instaclustr Console has these example settings pre-configured with your cluster’s ip addresses, username and password.

If your cluster has client ⇆ broker encryption enabled, create a new file named producer.properties with the following content, ensuring the password, truststore location, and bootstrap servers list are correct:

If your cluster does not have client ⇆ broker encryption enabled, create a new file named producer.properties with the following content, ensuring the password and bootstrap servers list are correct:

Make sure the password and bootstrap servers list are correct.

Important Notes:

  • To connect to your Kafka cluster over the private network, use port 9093 instead of 9092.
  • Instaclustr’s Kafka Schema Registry is configured with basic authentication credentials in the format user:password@schema-registry-url:8085
  • basic.auth.credentials.source=URL is necessary for this basic authentication to work correctly.

Java Code

Now that the configuration properties have been setup you can create a Kafka producer.

First, load the properties:

Once you’ve loaded the properties you can create the producer itself:

Next, create some OrderEvents to produce:

Where the getTimestamp() function is:

Now turn each OrderEvent into a ProducerRecord to be produced to the orders topic, and send them:

Finally, use the producer’s flush() method to ensure all messages get sent to Kafka:

Full code example:

Consuming Avro Objects

Client configuration

As in the producer example, before creating a Kafka consumer client you first need to define the configuration properties for the consumer client to use. In this example we provide only the required properties for the consumer client. See here for the full list of configuration options.

If your cluster has client ⇆ broker encryption enabled, create a new file named consumer.properties with the following content, ensuring the password, truststore location, and bootstrap servers list are correct:

If your cluster does not have client ⇆ broker encryption enabled, create a new file named consumer.properties with the following content, ensuring the password and bootstrap servers list are correct:

Make sure the password and bootstrap servers list are correct.

Important Notes:

  • To connect to your Kafka cluster over the private network, use port 9093 instead of 9092.
  • Instaclustr’s Kafka Schema Registry is configured with basic authentication credentials in the format user:password@schema-registry-url:8085
  • basic.auth.credentials.source=URL is necessary for this basic authentication to work correctly.

Java Code

Now that the configuration properties have been setup you can create a Kafka consumer.

First, load the properties:

Once you’ve loaded the properties you can create the consumer itself:

Before you can consume messages, you need to subscribe the consumer to the topic(s) you wish to receive messages from, in this case the orders topic:

Finally, continually poll Kafka for new messages, and print each OrderEvent received:

Full code example:

Putting Them Together

Now that you have a consumer and producer set up, it’s time to combine them.

Start the Consumer

Start the consumer before starting the producer, because by default, consumers only consume messages that were produced after the consumer started.

Start the Producer

Now that the consumer is setup and ready to consume messages, you can now start your producer.

If the consumer and producer are setup correctly the consumer should output the messages sent by the producer shortly after they were produced, for example:
