Replication and Replication Slot Metrics

The Replication metrics group provides details on:

  • Current LSN
  • LSN Received
  • Which nodes are Replicas
  • Replication status
  • Replication Lag

The Replication Slot metrics group provides details on:

  • Last LSN Sent to each replica

Current LSN & Last LSN Received

Current LSN

The Log Sequence Number (LSN) indicates the insert position of transactions in the Write Ahead Log (WAL).  The Current LSN metric shows the position of the latest transaction for the cluster.

LSN Received

Shows the latest LSN received by each replica in the cluster.  Ideally, this value should closely follow the Current LSN metric.

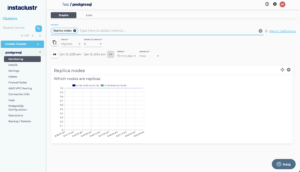

Replica Nodes


Provides historical data on which nodes are acting as replicas.  A value of “1” indicates that a node is a replica, whereas a value of “0” indicates that the node is not in recovery mode (e.g. it may be acting as the master).

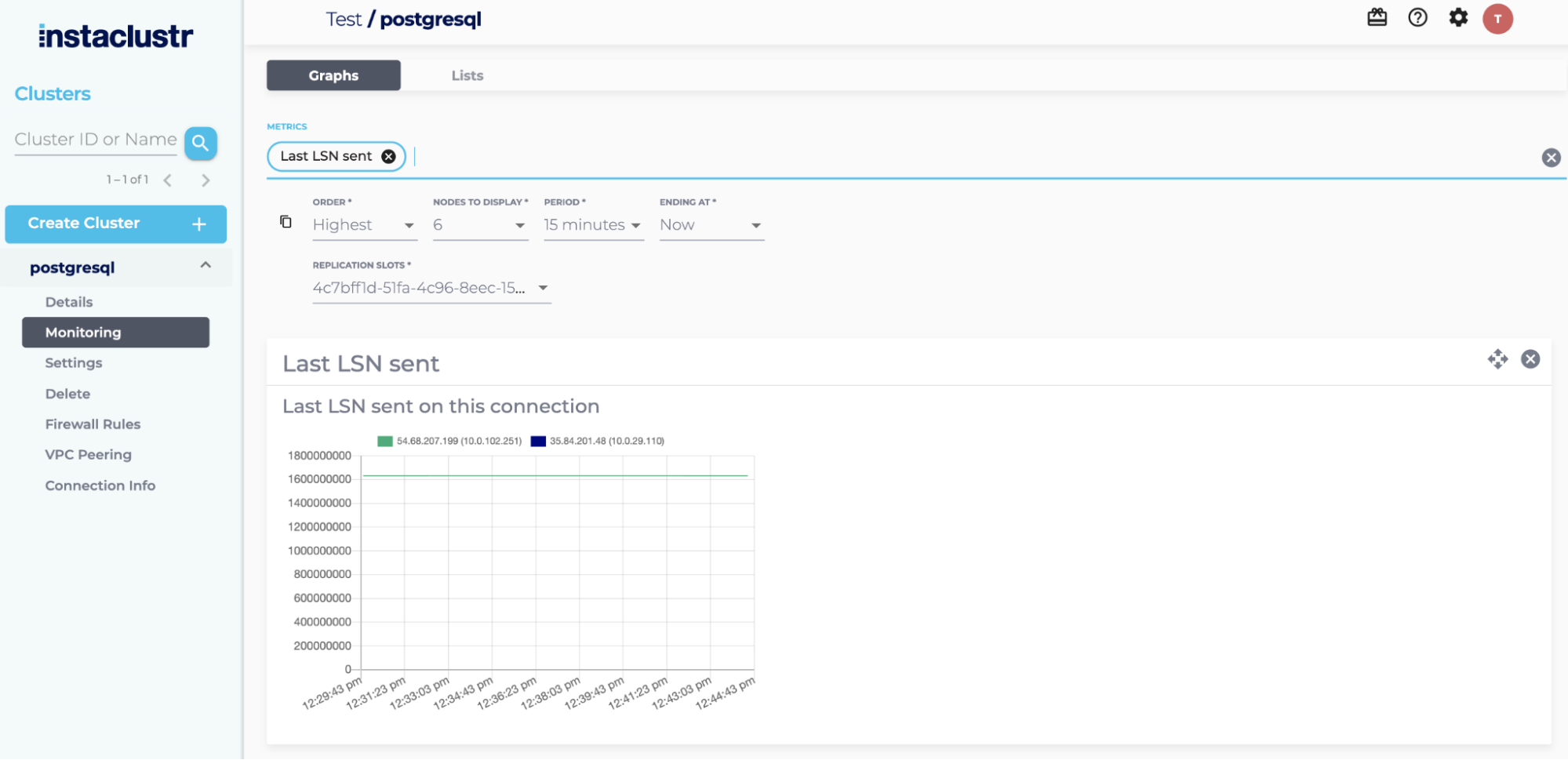

Last LSN Sent


Provides historical data on the last transaction sent by the master to a replica.  Ideally, this should closely follow the Current LSN metric.

For further details, see the official documentation.

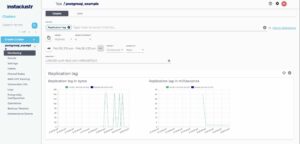

Replication Lag

Replication lag in bytes

Displays the current replication lag in bytes between a specific replica node and the master node. It is calculated from the difference between last flushed LSN and current LSN of the master node.

Replication lag in milliseconds

Displays the current replication lag in milliseconds between a specific replica node and the master node. This represents the time elapsed between flushing recent WAL locally on the master node and receiving notification that this replica node has written and flushed, but not applied it.

For further information on replication lag in PostgreSQL, see the official documentation.

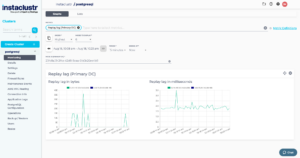

Replay Lag

Replay lag in bytes

Displays the current replay lag in bytes between a specific replica node and the master node. It is calculated from the difference between last replayed LSN and current LSN of the master node.

Replay lag in milliseconds

Displays the current replay lag in milliseconds between a specific replica node and the master node. This represents the time elapsed between flushing recent WAL locally on the master node and receiving notification that this replica node has written, flushed and applied it.

For further information on replay lag in PostgreSQL, see the official documentation.

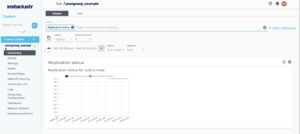

Replication Status

Provides historical data on if the replica node(s) are streaming. A value of “1” indicates that a replica node’s replication status is streaming, whereas a value of “0” indicates otherwise. Our support team will be notified if there are any issues with replication, and they will investigate and rectify the issue.

By Instaclustr Support
