Configure Kafka MCP Backend and Tools

Kafka MCP Backend

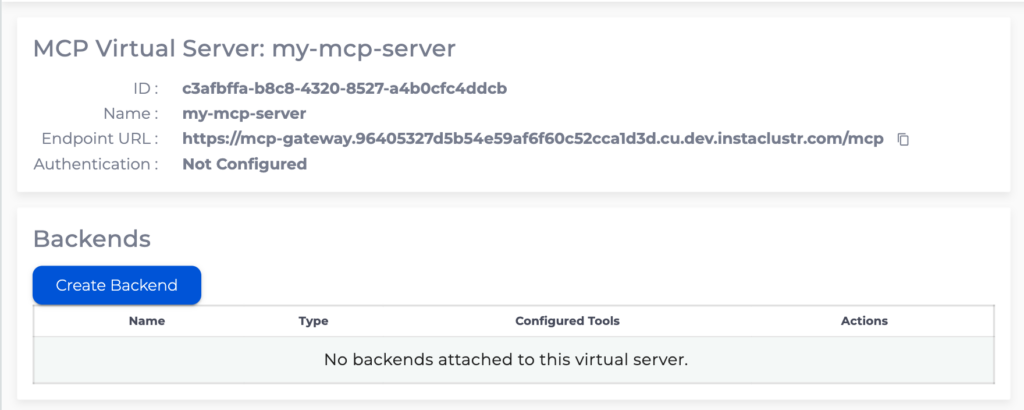

To create a Backend for MCP Virtual Server go to MCP Virtual Server details page and click “Create Backend”

Kafka backend allows configuration of MCP tools operating on data in a Instaclustr Kafka cluster.

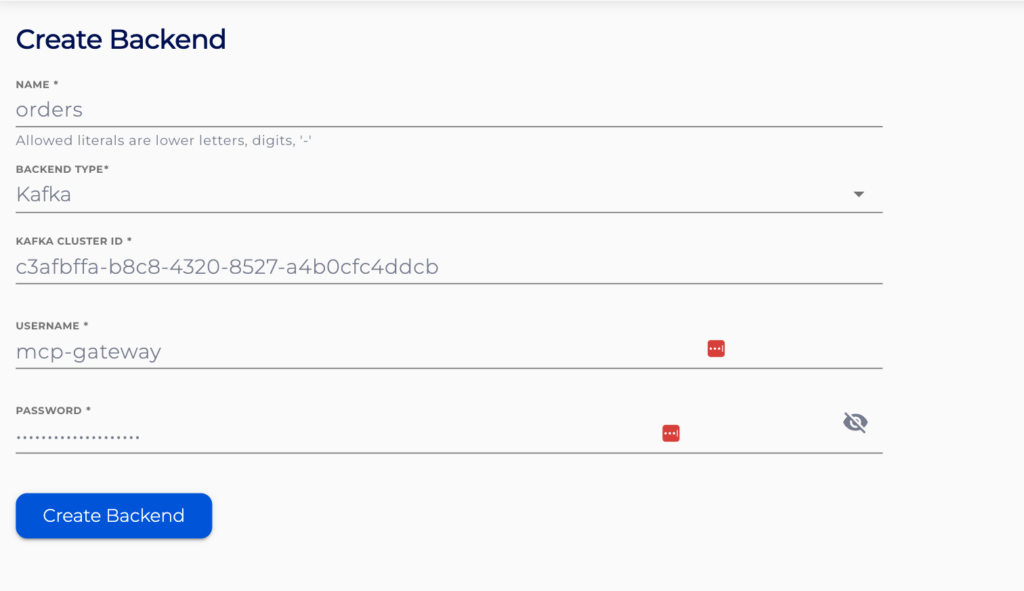

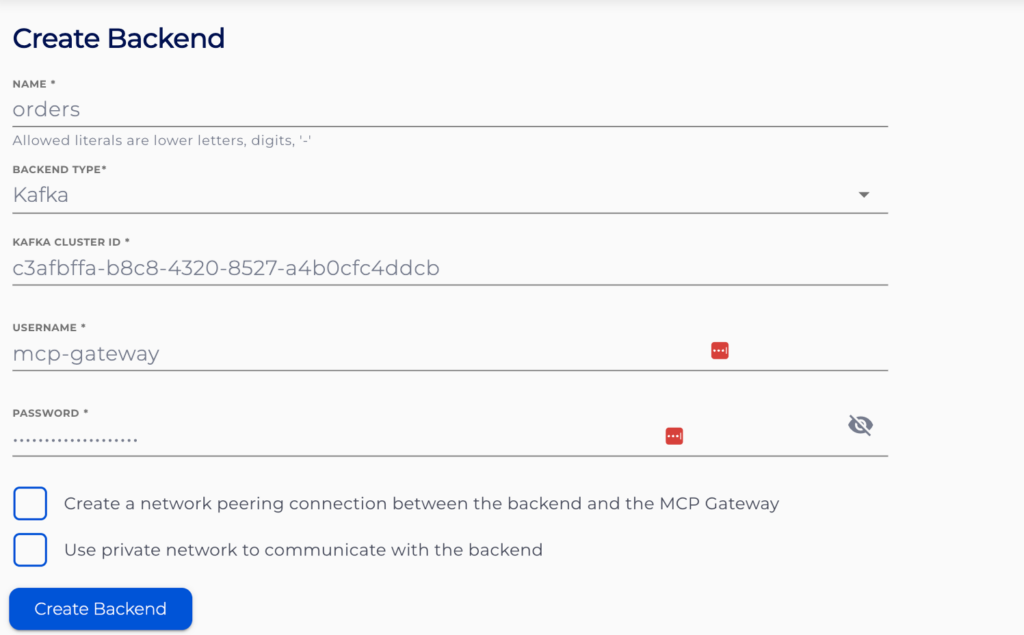

Specify the name for the backend, note that this name will be prepended to all the tools configured for this backend.
Provide a Kafka cluster ID and credentials that MCP Gateway will use authenticate to the Kafka cluster. Follow Creating an Apache Kafka Cluster to create a Kafka cluster, and Managing Apache Kafka Users  on how to create a Kafka cluster user. Additionally follow Managing Apache Kafka ACLs to ensure the user has only the privileges required.

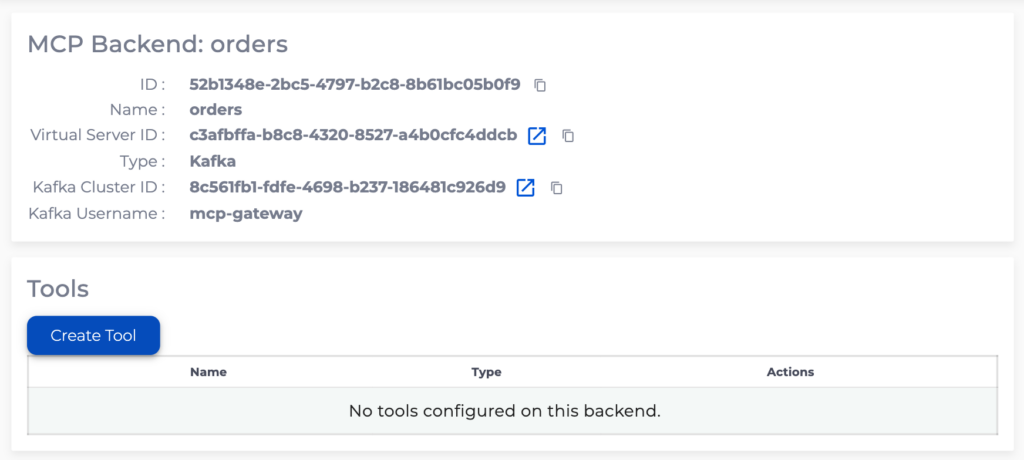

To create Kafka tools go to Kafka backend details page and click “Create Tool”

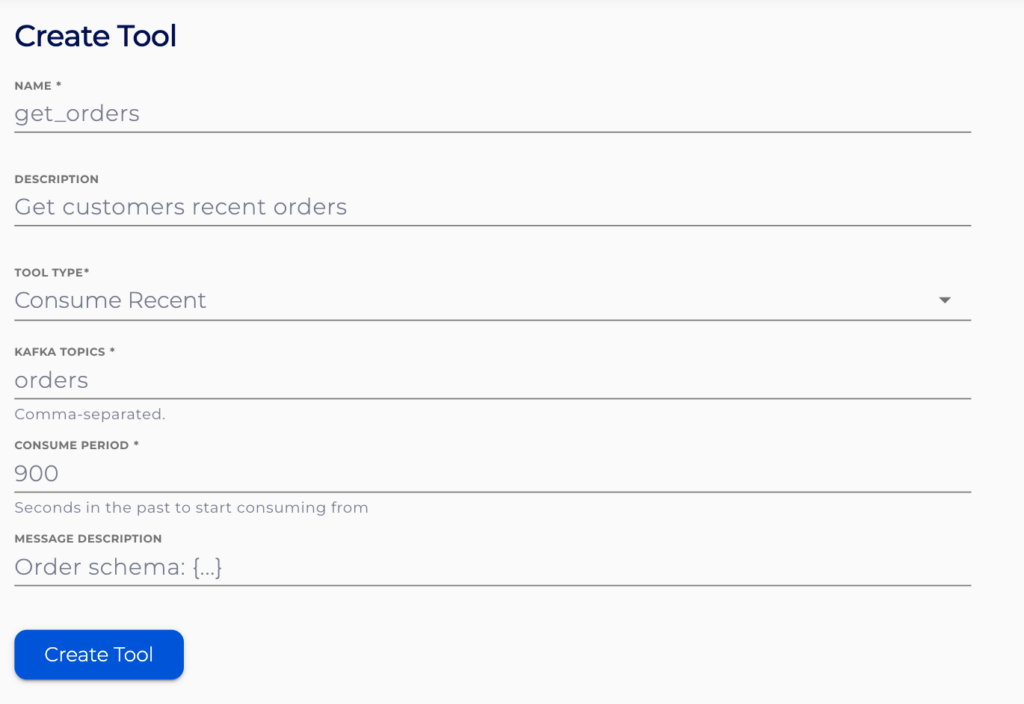

Consume Recent tool

Consume recent tools will read data from the pre-configured topics going back pre-configured number of seconds in the past.

Specify the name and description for the tool. These should provide information about the tools indented use and effects.
Provide a comma-separated list of topics for the tool to retrieve data from and the consume period in seconds.
Message description can optionally describe the content of each individual record.

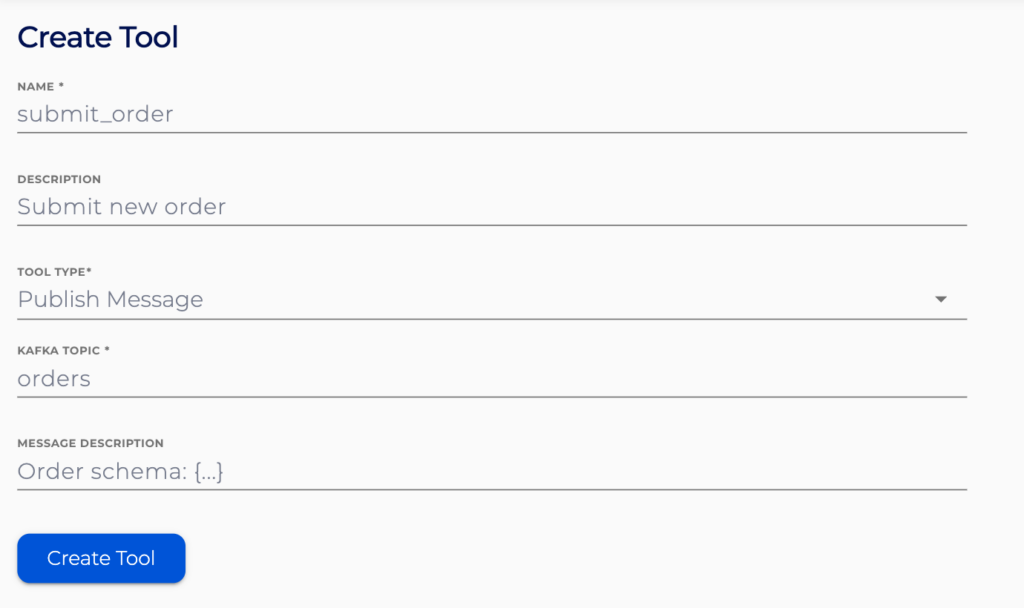

Publish Message tool

Publish Message tool will publish a message to the pre-configured topic.

Specify the name and description for the tool. These should provide information about the tools indented use and effects.
Provide the topic name to publish to.
Message description should describe the structure of the message as precisely as possible. For JSON messages user JSON schema specification.
